SIEM Elastic

Intro

This tutorial aims to guide you through the process of setting up a robust log management solution using Elastic Stack. Elastic Stack, comprising Elastic Search, Kibana, and other components, offers powerful tools for searching, analyzing, and visualizing log data in real-time.

Pre-requis

Elastic : server Ubuntu 22.04 > RAM : 4G // CPU : 2 // Disk : 32Go
Fleet Server : server Ubuntu 22.04 > RAM : 2G // CPU : 1 // Disk : 16Go

Elasticsearch

Installation of Elasticsearch

sudo apt install curl

wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo gpg --dearmor -o /usr/share/keyrings/elasticsearch-keyring.gpg

echo "deb [signed-by=/usr/share/keyrings/elasticsearch-keyring.gpg] https://artifacts.elastic.co/packages/8.x/apt stable main" | sudo tee /etc/apt/sources.list.d/elastic-8.x.list

sudo apt update
sudo apt install elasticsearch

The generated password for the elastic built-in superuser is : wugLGil0YL01fuDEixQF

If this node should join an existing cluster, you can reconfigure this with
'/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here>'
after creating an enrollment token on your existing cluster.

You can complete the following actions at any time:

Reset the password of the elastic built-in superuser with
'/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'.

Generate an enrollment token for Kibana instances with
 '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'.

Generate an enrollment token for Elasticsearch nodes with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'.

sudo nano /etc/elasticsearch/elasticsearch.yml

sudo systemctl daemon-reload
sudo systemctl enable elasticsearch
sudo systemctl start elasticsearch

Test Elasticsearch

curl -X GET -k https://elastic:wugLGil0YL01fuDEixQF@localhost:9200

curl -X GET -k https://elastic:<elasticpasswd>@localhost:9200

You should have a return like this

{
  "name" : "Elastic-MSPR",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "SWXS_Do6RSG4HJLaaglxFQ",
  "version" : {
    "number" : "8.12.2",
    "build_flavor" : "default",
    "build_type" : "deb",
    "build_hash" : "48a287ab9497e852de30327444b0809e55d46466",
    "build_date" : "2024-02-19T10:04:32.774273190Z",
    "build_snapshot" : false,
    "lucene_version" : "9.9.2",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}

Kibana

Installation of Kibana

sudo apt update
sudo apt install kibana

Create an enrollement token

sudo /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana

eyJ2ZXIiOiI4LjEyLjIiLCJhZHIiOlsiMTAuMTAuMjIuMTA6OTIwMCJdLCJmZ3IiOiI2MjkwM2NlNWVjZjY5ZGY1YzQ4MTNkYzgxOWM5YjIyM2Q1YzUyOTM2ZGQ0YjA5YjU4YTdmMDRjNjY0NzI0MGFhIiwia2V5IjoicmxOcVc0NEJmMDdvY2dnNlE2aU46Y21SVk9rNXdTS2FSLVJ0WllzaDhQdyJ9

Add token to kibana

sudo /usr/share/kibana/bin/kibana-setup

Paste the enrollement token

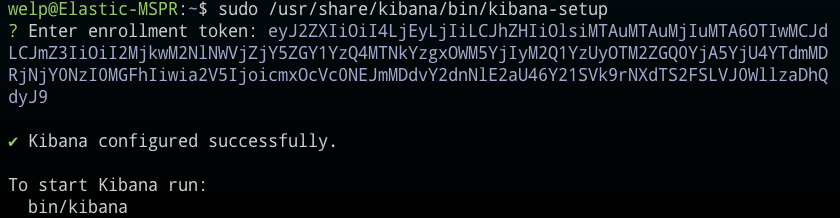

kibana-token

Start Kibana

sudo systemctl enable kibana
sudo systemctl start kibana

Check if kibana is up

ss -lntp

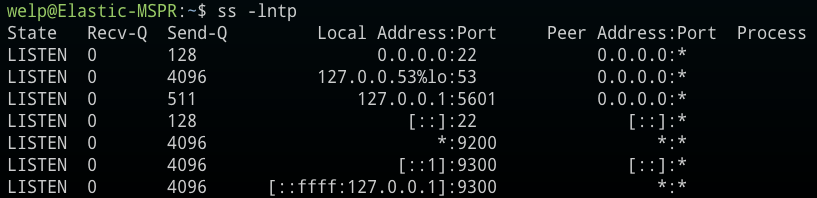

check-kibana

Nginx

Installation of nginx

sudo apt update
sudo apt install nginx

Create a proxy pass

sudo nano /etc/nginx/sites-enabled/default

proxypass-1

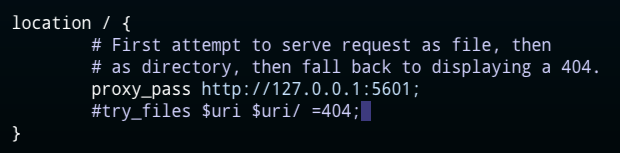

proxypass-2

sudo systemctl enable nginx
sudo systemctl start nginx

SSL certificate creation (optional)

Install certbot

sudo snap install --classic certbot

sudo ln -s /snap/bin/certbot /usr/bin/certbot

sudo snap set certbot trust-plugin-with-root=ok

sudo snap install certbot-dns-<PLUGIN>

Create a .ini file

cloudflare.ini

# Cloudflare API token
dns_cloudflare_api_token = <VOTRE_TOKEN_API_CLOUDFLARE>

certbot certonly --dns-cloudflare --dns-cloudflare-credentials /chemin/vers/votre/fichier/credentials.ini -d votre_domaine.com

Fleet Server

Log in to kibana

http:<IP_Adress>

https://<IP_Adress>

Add fleet server

To ensure connection with this fleet server and elastic search we will copy into fleet server the elastic certificate

On elastic server

sudo -s

cd /etc/elasticsearch/certs

python3 -m http.server

On Fleet Server

sudo mkdir -p /usr/local/etc/ssl/certs/elastic/

sudo curl 10.10.22.10:8000/http_ca.crt -o /usr/local/etc/ssl/certs/elastic/http_ca.crt

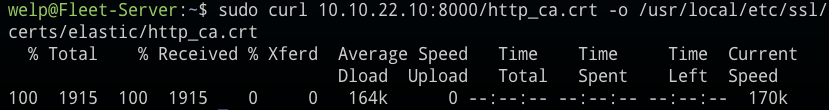

transfert-cert

Go to kibana
Clic on Add Integration

add-integration

Search for “Fleet server”

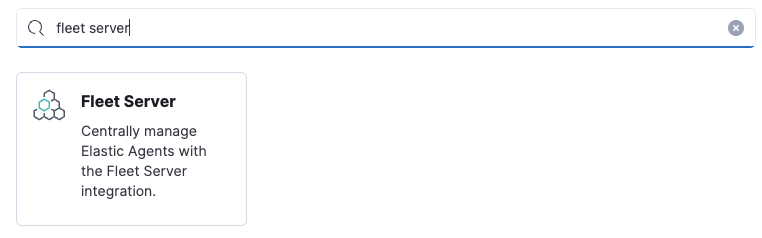

fleet-server

Add fleet server

add-fleetserver

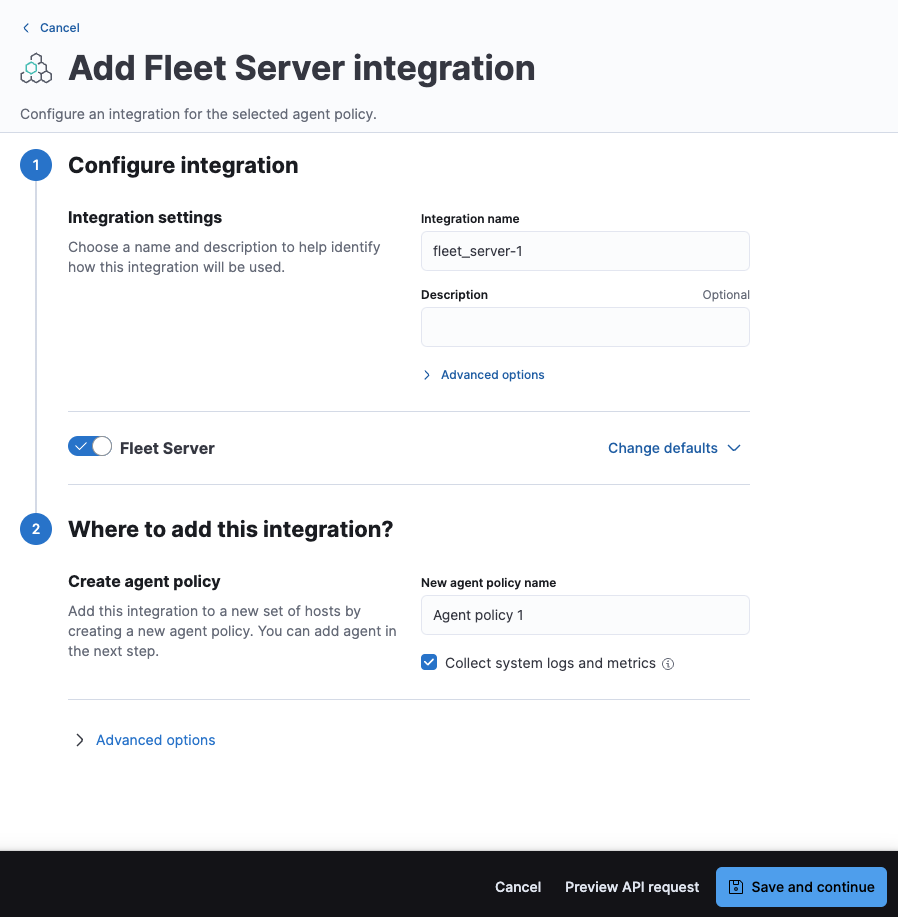

fleet-server-integration

Leave as default & click on “Save and continue”

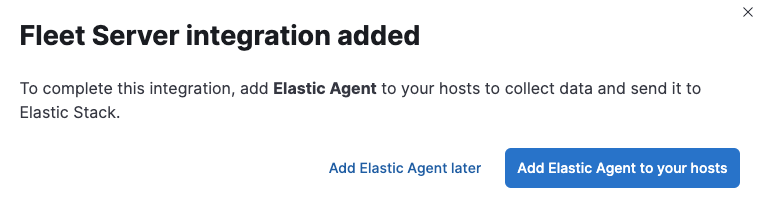

Click on “Add Elastic Agent to yours hosts”

create-agent

Add Fleet Server

We will used a different server, only the fleet server will be connected to elastic

Enroll in fleet
Select the agent policy created earlier
We will used Quick Start as deployment mode

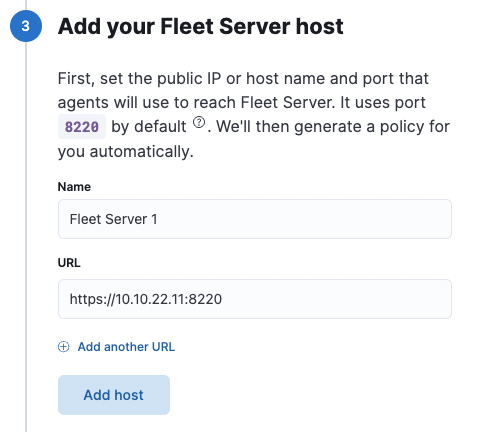

Add your fleet server host
Add name and URL for you fleet server

add-fleet-host

Generate a service token

generate-serviceToken

AAEAAWVsYXN0aWMvZmxlZXQtc2VydmVyL3Rva2VuLTE3MTA5MzU1NzMxOTA6RlBiLXc4UTVRRUtjUjlnZnd0VGZXQQ

curl -L -O https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.12.2-linux-x86_64.tar.gz
tar xzvf elastic-agent-8.12.2-linux-x86_64.tar.gz
cd elastic-agent-8.12.2-linux-x86_64
sudo ./elastic-agent install \
  --fleet-server-es=https://10.10.22.10:9200 \
  --fleet-server-service-token=AAEAAWVsYXN0aWMvZmxlZXQtc2VydmVyL3Rva2VuLTE3MTA5MzU1NzMxOTA6RlBiLXc4UTVRRUtjUjlnZnd0VGZXQQ \
  --fleet-server-policy=1ef305f7-02d4-4201-b44c-7026ceda3943 \
  --fleet-server-es-ca-trusted-fingerprint=62903ce5ecf69df5c4813dc819c9b223d5c52936dd4b09b58a7f04c6647240aa \
  --fleet-server-port=8220 \
  --insecure

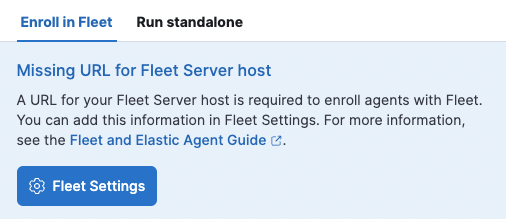

fleet-setting

go to “Fleet Settings”

You should have your fleet server with the right URL display here

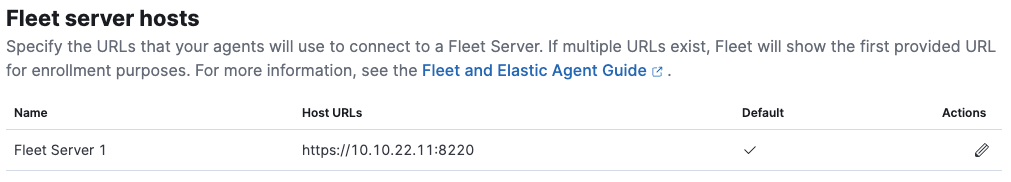

fleet-url

Creation of encrypted-key for Kibana

cd /usr/share/kibana/bin/
sudo ./kibana-encryption-keys generate -q

xpack.encryptedSavedObjects.encryptionKey: b67434c7cc01b08dedfd046ea08e618b
xpack.reporting.encryptionKey: e286998b837edff9d4b51def73cf11a2
xpack.security.encryptionKey: 10ca0eadbb70b4c31a615da045740043

Paste output at the bottom of your kibana.yml

sudo nano /etc/kibana/kibana.yml

sudo systemctl restart kibana
